dmXLAN NodeGBx 8

The dmXLAN NodeGBx 8 (stand-alone) is a compact DMX / Ethernet node featuring 8 fully isolated, fully programmable DMX/RDM ports, a dual Gigabit Ethernet switch, and an integrated user interface with display.

It offers 8 bi-directional, optically isolated DMX ports, configurable as DMX/RDM inputs or outputs, and supports advanced functions such as data splitting, merging (HTP / Priority), softpatching and backup when programmed with ELC’s free dmXLAN software.

Each DMX port is equipped with a programmable RGB status LED, providing clear visual feedback per universe/port and making it easy to identify ports during setup or troubleshooting. The DMX output is continuously monitored; detected changes and errors are shown on the node’s display and are also reported in dmXLAN for remote diagnostics.

Find a distributor near you
View manual

Need firmware, software or downloads?

Head to our support section for manuals, firmware, software tools (including version history), and help with troubleshooting.

Features

  • Active output measurement with cable resistance and short‑circuit checking
  • Configurable RGB status LED for every DMX port
  • 8 Bi-directional DMX ports on the front panel (XLR 5-pin female)
  • RDM compatible with RDM proxy support (input and output)
  • Supports sACN, Art-Net, Shownet, Vision.net & RTTrPL
  • Supports pixel LED string protocols WS2812, WS2813, UCS1903, and SK6822, providing control for up to 4,096 serial LEDs from a single unit
  • Remote (offline) programming and monitoring and fixture parameter override using dmXLAN v4 or Fixture Tester
  • DMX Redundancy, loop the DMX back to another NodeHD or NodeGBx output for failover backup
  • DMX Output normal, HTP, Priority merging, Softpatch (channel by channel), programmable merging with DMX channel control
  • Support for WYSIWYG, Depence, Capture, Vision and other visualization software
  • Local control via color display with rotary encoder and pushbutton selector
Protocols
    ArtNet.svg

    Art-Net

    Broadcast DMX512 data across IP networks.
    sACN.svg

    sACN

    Transmit DMX512 data efficiently with multicast capabilities.
    sliders-vertical.svg

    ShowNet / Vision.net

    Integrates with Vari‑Lite/Signify architectural lighting control systems.
    RTTrPL.svg

    RTTrPL (BlackTrax)

    Real‑Time Tracking Protocol for use with BlackTrax tracking systems.
    RDM.svg

    RDM

    Bi-directional communication for configuring and monitoring connected devices.
    serialled.svg

    Serial LED

    Drive common serial‑LED protocols directly, eliminating the need for an external interface.
Highlights
    laptop.svg

    dmXLAN compatible

    dmXLAN allows you to configure, control, test, and monitor network and lighting devices, without the need for an external lighting console.
    dmxredundancy.svg

    DMX Rendundancy

    The DMX Backup delivers seamless 50 ms failover to keep your lighting running without interruption.
    route.svg

    Advanced softpatching

    Merge up to three universes with full channel‑by‑channel configurability and external merge control.
Order details


Article numbers:

ELC-DLN8GBX- dmXLAN NodeGBx 8 Stand-alone version (with user interface)

ELC-DLN8GBXSL – dmXLAN NodeGBx 8 Follower version (without user interface to be combined with dmXLAN SwitchGBx 10 or SwitchGBx 18)

Software

Enhance your workflow

Integrate the following software with the dmXLAN NodeGBx 8 to create a more efficient and streamlined workflow.

Cases

Proven when it counts

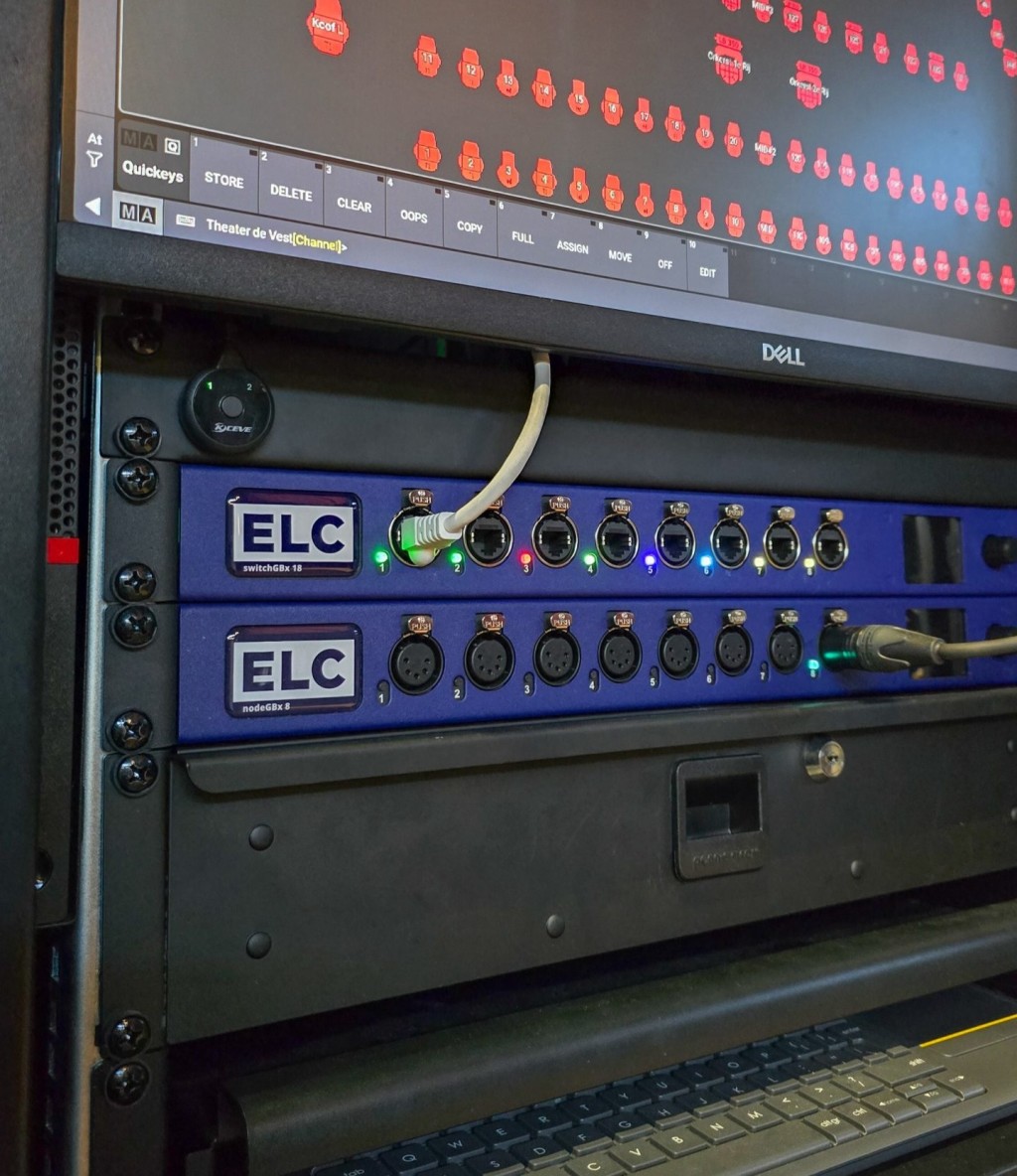

Stories of productions and installations using the dmXLAN NodeGBx 8.
